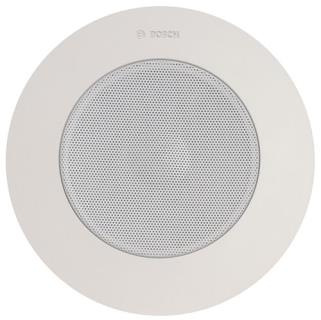

LBC3951/12 Stropní reproduktor 6W, 4"

• Compact yet powerful

• Very wide opening angle

• Modern unobtrusive styling

• Installation friendly

• Splash-waterproof

• Comply with international safety regulations

Electrical

• Rated power 6 / 3 / 1.5 / 0.75 W
• Sound pressure level at 6 W / 1 W (1 kHz, 1 m) 95 dB / 87 dB (SPL)
• Sound pressure level at 6 W / 1 W (4 kHz, 1 m) 98 dB / 90 dB (SPL)
• Effective frequency range (-10 dB) 90 Hz to 18 kHz
• Opening angle at 1 kHz/4 kHz (-6 dB) 180° / 65°
• Rated voltage 100 V
• Rated impedance 1667 ohm
• Connector 2-pole push-in terminal block

Mechanical

• Diameter 160 mm (6.30 inch)
• Maximum depth 95 mm (3.74 inch)
• Ceiling thickness 9 to 25 mm (0.35 to 0.98 inch)
• Mounting cut-out 145 mm (5.71 inch)
• Speaker diameter 101.6 mm (4 in)
• Weight 640 g (1.41 lb)
• Color White (RAL 9010)
• Magnet weight 101 g (3.57oz.)

Environmental

• Operating temperature -25 ºC to +55 ºC (-13 ºF to +131 ºF)
• Storage and transport temperature -40 ºC to +70 ºC (-40 ºF to +158 ºF)
• Relative humidity <95%
