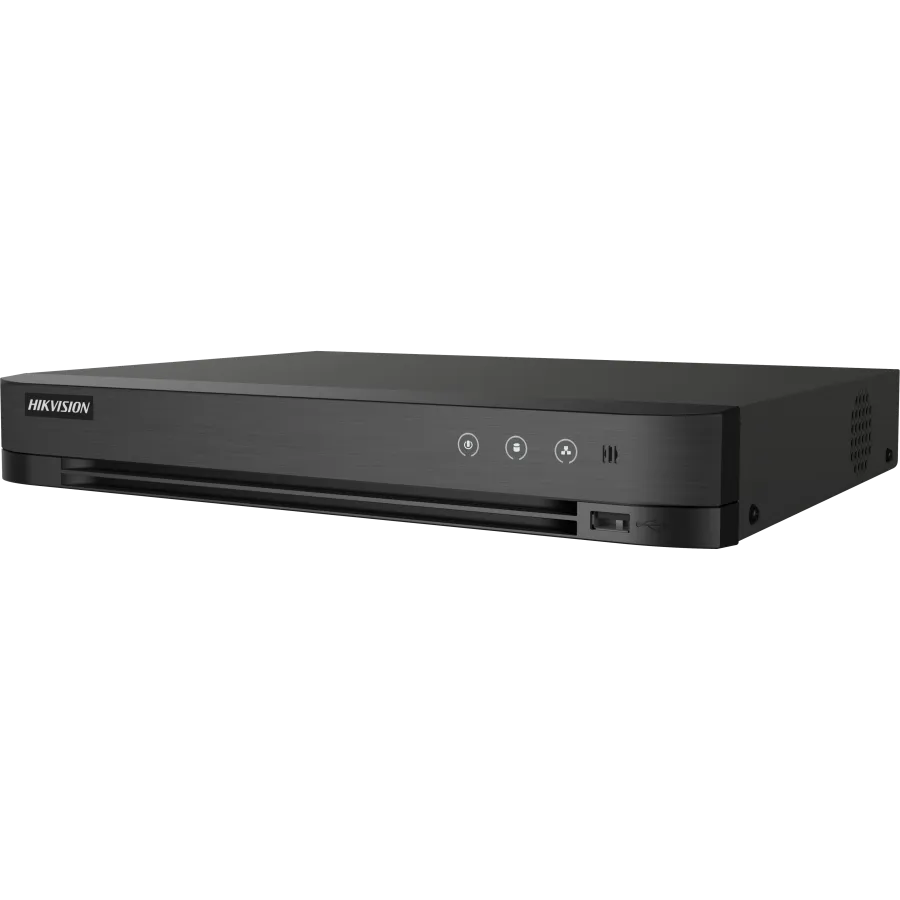

iDS-7208HUHI-M1/S/A(C) DVR 8xTVI, 1xHDD, 5MPx, AcuSense, alarm

8 channels and 1 HDD 1U AcuSense DVR
False alarm reduction by human and vehicle target classification based on deep learning
Efficient H.265 pro+ compression technology
Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Up to 16 network cameras can be connected.

Auxiliary Interface

• Alarm In/Out: N/A
• Capacity: Up to 10 TB capacity for each disk
• SATA: 1 SATA interface
• Serial Interface: RS-485 (half-duplex)
• USB Interface: 1 × USB 2.0； 1 × USB 3.0

General

• Consumption: ≤ 10 W
• Dimension (W × D × H): 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• Power Supply: 12 VDC
• Weight: ≤ 2 kg (4.4 lb)
• Working Humidity: 10% to 90%
• Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)

Network

• Network Interface: 1,RJ45 10M/100M/1000M self-adaptive Ethernet interface
• Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection: 64

Recording

• Audio Bitrate: 64 Kbps
• Audio Compression: G.711u
• Dual-stream: Support
• Encoding Resolution: Main stream: 8 MP@8 fps/5 MP@12 fps/ 4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
• Stream Type: Video, Video & Audio
• Video Bitrate: 32 Kbps to 10 Mbps
• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Video and Audio

• AHD Input: 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• Analog Video Input: 8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• CVBS Input: PAL/NTSC
• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• HDCVI Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• HDMI Output: HDMI: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output
• HDTVI Input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
• IP Video Input: 4-ch (up to 12-ch) Up to 8 MP resolution Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps ;Support H.265+/H.265/H.264+/H.264 IP cameras
• Synchronous playback: 8-ch
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
