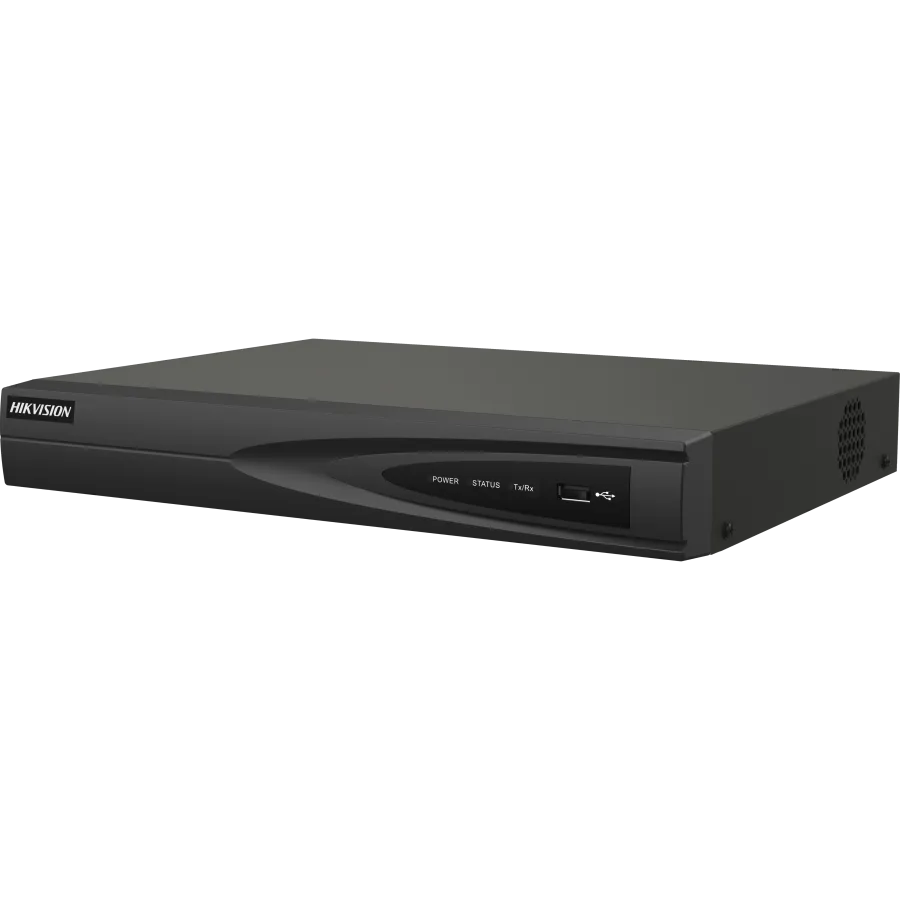

DS-7604NI-K1/4P 4-ch 1U 4 PoE 4K NVR

Name: DS-7604NI-K1/4P 4-ch 1U 4 PoE 4K NVR
Brand: hikvision
SKU: 2841

PREDAJ UKONČENÝ

Inteligentná analýza:

Nedisponuje funkciou

Šasi:

Dekódovací výkon:

6-kanálov@1080p

Externé rozhranie:

VGA

SATA rozhrania pre HDD:

Počet IP kanálov:

4-kanály

Rozhranie PoE:

4-kanály

RAID:

Nie

Bezdrôtová sieť:

Nedisponuje funkciou

Výrobca: hikvision

Kód: 2841

SAP kód: 303613464

Dostupnosť: Predaj ukončený

Overiť dostupnosť na predajni

Sledovať produkt Pridať do obľúbených

Popis Potrebujete poradiť?

Up to 4-ch IP camera inputs
H.265+/H.265/H.264+/H.264 video formats
Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
Up to 40 Mbps incoming bandwidth

Auxiliary Interface

Alarm In/Out: N/A (4/1 is optional)
Capacity: Up to 8 TB capacity for each disk
SATA: 1 SATA interface
USB Interface: 2 × USB 2.0

Certification

CE: EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
FCC: Part 15 Subpart B, ANSI C63.4-2014

Decoding

Decoding Capability: 1-ch@8 MP (30 fps)/2-ch@4 MP (30 fps)/5-ch@1080p (30 fps);1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps);1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Decoding Format: H.265+/H.265/H.264+/H.264
Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback: 4-ch

General

Consumption: ≤ 10 W (without HDD and PoE off)
Dimension (W × D × H): 320 × 240 × 48 mm (12.4" × 9.4" × 1.9")
Power Supply: 48 VDC, 1.35 A
Weight: ≤ 1.18 kg (without HDD, 2.6 lb.)
Working Humidity: 10% to 90%
Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)

Motion Detection 2.0

Human/Vehicle Analysis: 1-ch;4-ch

Network

Network Interface: 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Network Protocol: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Remote Connection: 32

PoE

Interface: 4-ch, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power: ≤ 50 W
Standard: IEEE 802.3 af/at

Recording

Audio Compression: G.711ulaw/G.711alaw/G.722/G.726
Stream Type: Video, Video & Audio

Video and Audio

Audio Output: 1-ch, RCA (Linear, 1 KΩ)
HDMI Output: 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
IP Video Input: 4-ch
Incoming Bandwidth: 40 Mbps
Outgoing Bandwidth: 80 Mbps
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1kΩ)
VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode: HDMI/VGA simultaneous output
