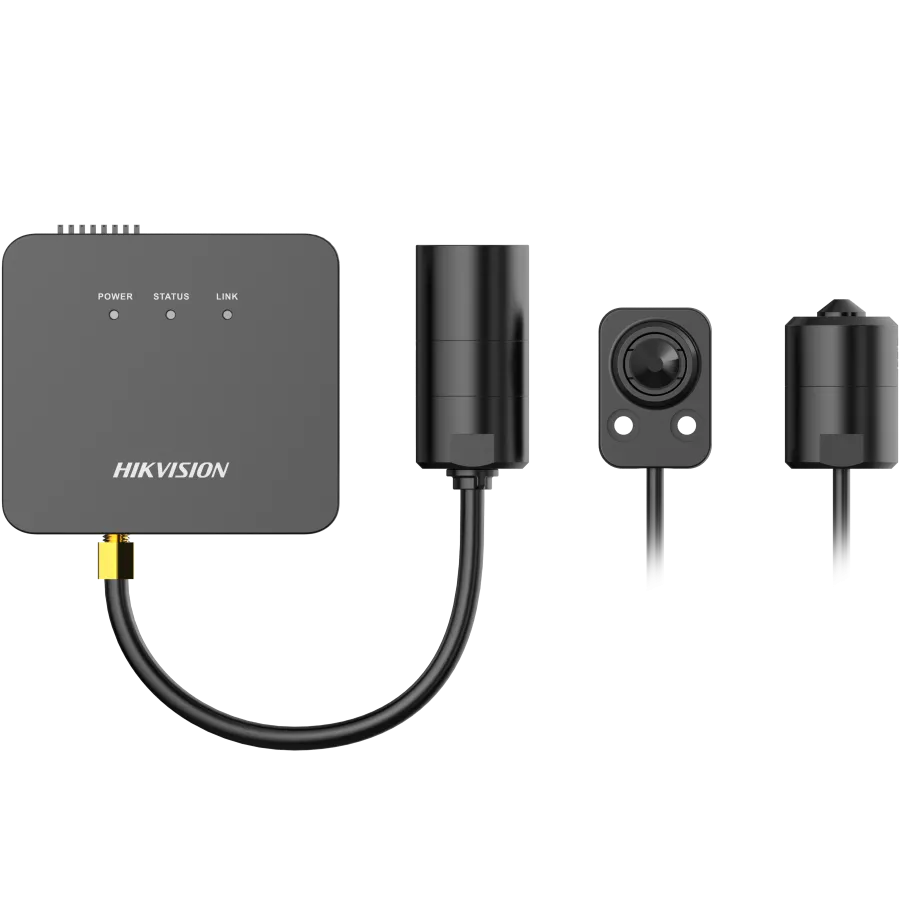

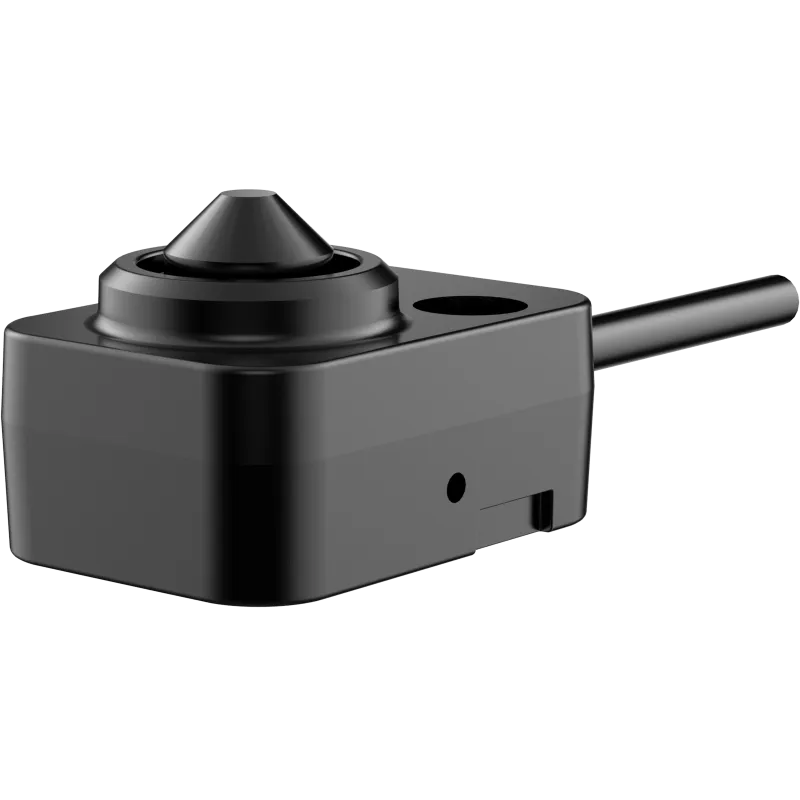

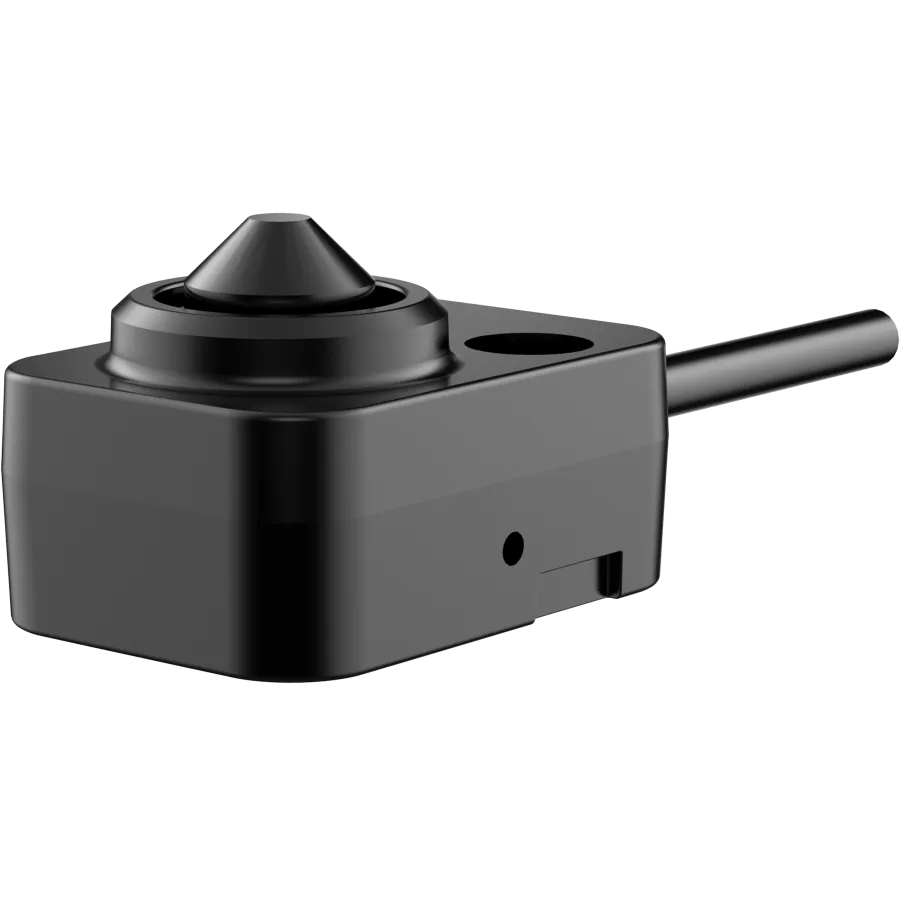

DS-2CD6425G1-20(3.7mm)8m 2MPx IP pinhole kamera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging against strong back light due to 120 dB true WDR technology
Audio and alarm interface available
3D DNR technology delivers clean and sharp images

Approval

• EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
• Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• Safety: UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005); LOA (IEC/EN 60950-1)

Audio

• Audio Bit Rate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
• Audio Compression : G.711/G.722.1/G.726/MP2L2/PCM/AAC
• Audio Sampling Rate: 8 kHz/16 kHz/32 kHz
• Audio Type: Mono
• Environment Noise Filtering: Yes

Camera

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max. Resolution: 1920 × 1080
• Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON)
• Shutter Time: 1/3 s to 1/100,000 s

DORI

• DORI: L10/L20: 2.8 mm: D: 47.9 m, O: 19 m, R: 9.6 m, I: 4.8 m 3.7 mm: D: 59.3 m, O: 23.5 m, R: 11.9 m, I: 5.9 m L30: 2.8 mm: D: 42.8 m, O: 17 m, R: 8.6 m, I: 4.3 m 4 mm: D: 55.2 m, O: 21.9 m, R: 11 m, I: 5.5 m

Event

• Basic Event : Motion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality diagnosis
• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
• Smart Event: Intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Audio exception detection, defocus detection, scene change detection

General

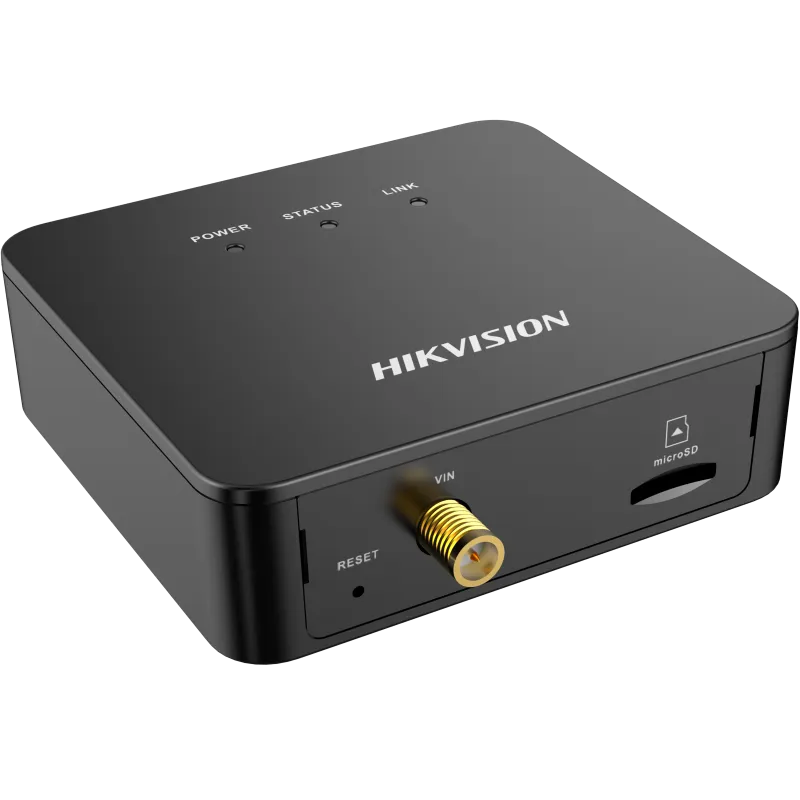

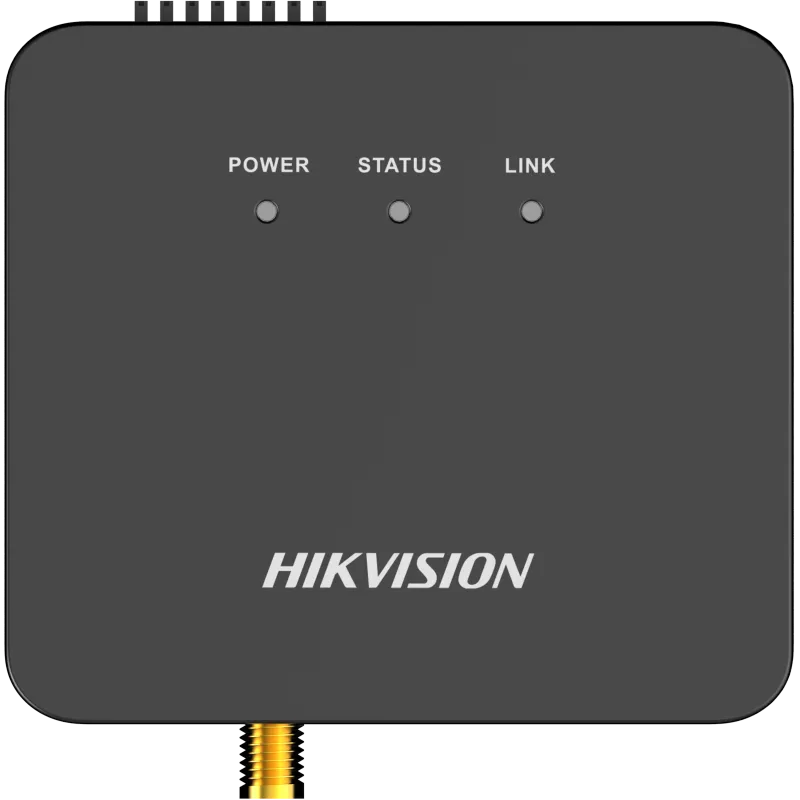

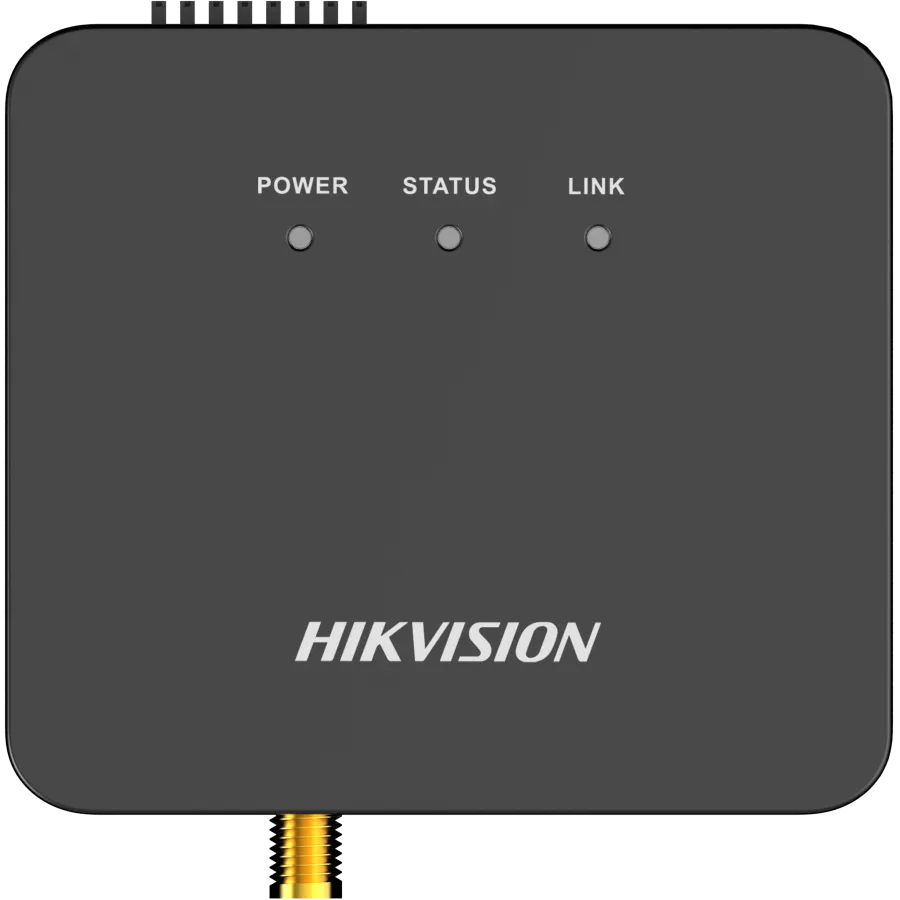

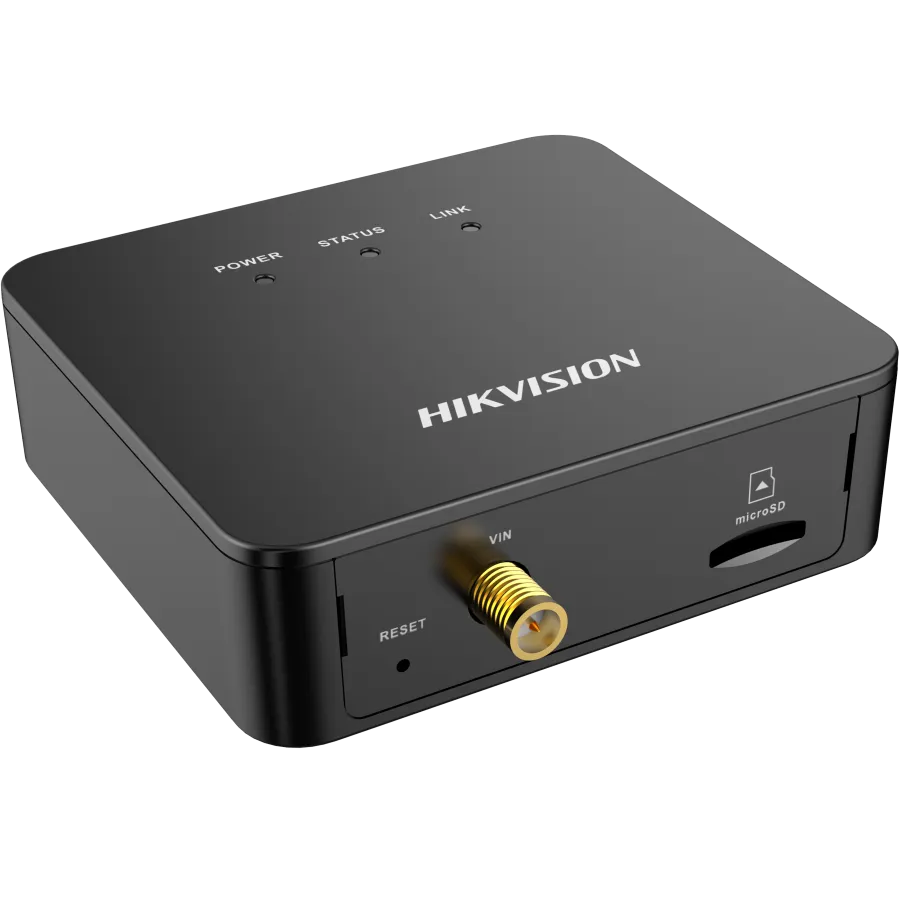

• Dimension: Main body: 77.5 mm × 69 mm × 26 mm (3.1" × 2.7" × 1.0") L10: Ø26 mm × 40 mm (Ø1.0" × 1.6") L20: 37 mm × 26 mm × 25 mm (1.5" × 1.0" × 1.0") L30: Ø26 mm × 50 mm (Ø1.0" × 2.0")
• General Function: One-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter
• Language: 18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese
• Length of Lens Cable: 2 m (6.6 ft.) and 8 m (26.2 ft.) optional
• Package Dimension: Kit/Main body: 254 mm × 164 mm × 130 mm (10" × 6.5" × 5.1") Camera: 219 mm × 139 mm × 100 mm (8.6" × 5.5" × 3.9")
• Power: 12 VDC ± 20%, 0.25 A, max. 3 W, two-core terminal block PoE: 802.3af, Type 1, Class 3, 36 V to 57 V,0.1 A to 0.07A, max. 3.65 W
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Weight: Main body: approx. 90 g (0.2 lb.) Camera: approx. 90 g (0.2 lb.)
• With Package Weight: Main body: approx. 456 g (1.0 lb.) Package (with 8 m cable): approx. 991 g (2.2 lb.) Package (with 2 m cable): approx. 776 g (1.7 lb.) Camera (with 8 m cable): approx. 676 g (1.5 lb.) Camear (with 2 m cable): approx. 451 g (1.0 lb.)


• Day/Night Switch: Day, Night, Auto, Schedule
• Image Enhancement: BLC, HLC, defog, 3D DNR
• Image Parameters Switch: Yes
• Image Settings: Saturation, brightness, contrast, and sharpness adjustable by client software or web browser
• Privacy Mask: Yes
• Wide Dynamic Range (WDR): 120 dB

Interface

• Alarm : 1 input, 1 output (max. 12 VDC, 30 mA)
• Audio: 1 input (line in), 1 output (line out)
• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support MicroSD/MicroSDHC/MicroSDXC card, up to 256 GB
• RS-485: 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
• Reset Key: Yes

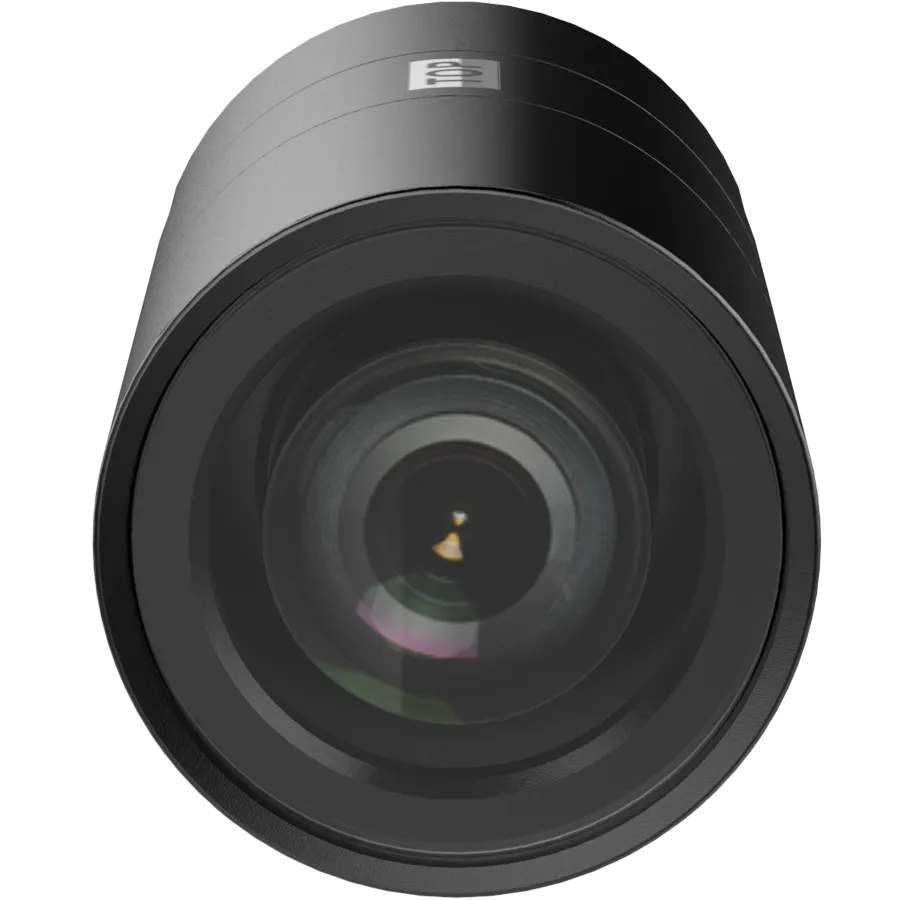

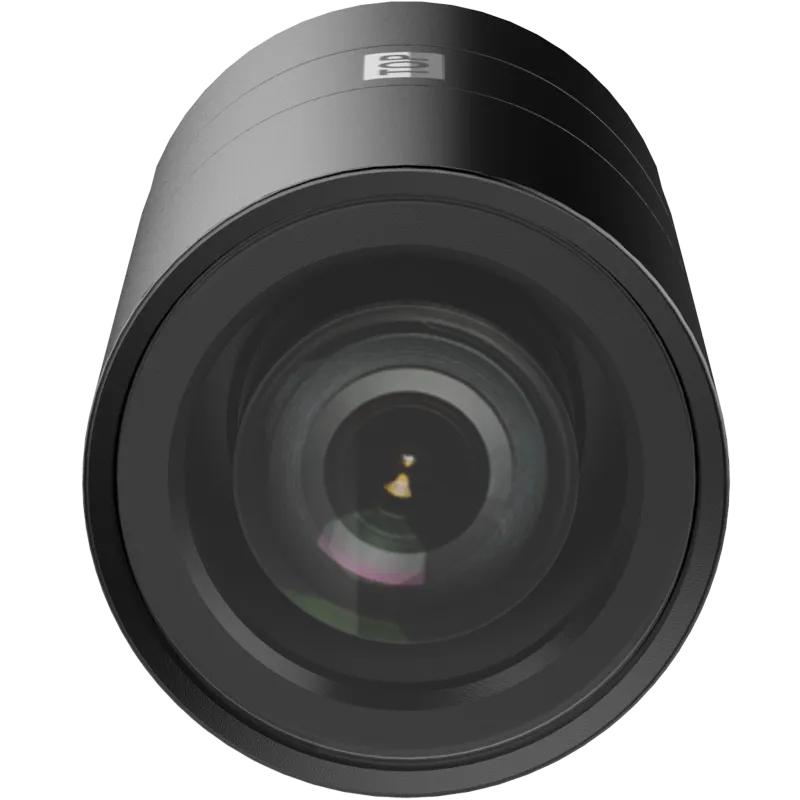

Lens

• Aperture: L10/L20: 2.8 mm: F2.5 3.7 mm: F2.5 L30: 2.8 mm: F2.0 4 mm: F2
• Focal Length & FOV: L10/L20 model: 2.8 mm: horizontal FOV: 93.9°, vertical FOV: 51.7°, diagonal FOV: 109.3° 3.7 mm: horizontal FOV: 75.5°, vertical FOV: 41.6°, diagonal FOV: 87.3° L30 model: 2.8 mm: horizontal FOV: 107.8°, vertical FOV: 57.9°, diagonal FOV: 126.7° 4 mm: horizontal FOV: 82.8°, vertical FOV: 45.1°, diagonal FOV: 98°
• Iris Type: Fixed
• Lens Mount: L10/L20: Mini L30: M12

Network

• API: Open Network Video Interface, ISAPI, SDK, ISUP 5.0
• Client: iVMS-4200, Hik-Connect
• Network Storage: NAS (NFS, SMB/CIFS)
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
• Simultaneous Live View: Up to 15 channels
• User/Host: Up to 32 users 3 level: administrator, operator, and user
• Web Browser: Plug-in required live view: IE10, IE11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Video

• Bit Rate Control: CVR/BVR
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type: Main Profile
• Main Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Region of Interest (ROI): Support 1 fixed region for main stream
• Scalable Video Coding (SVC): H.264 and H.265 encoding
• Sub-Stream: 50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
• Third Stream: 50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360, 320 × 240)
• Video Compression : Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
